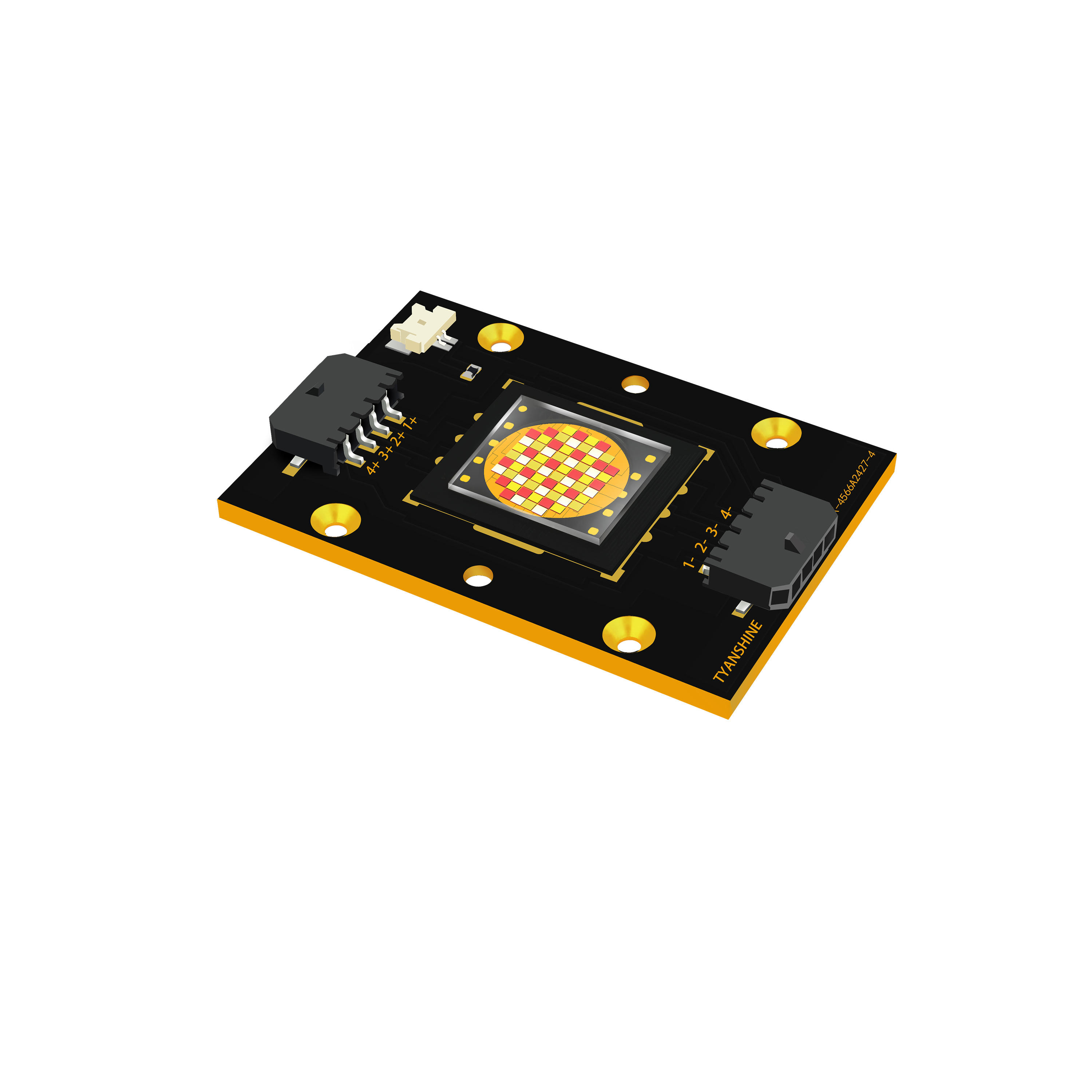

4566RGBW 400W RGBW LED module

Home Products Product Center

Product Features

Compact LES with high light density, upto 5W/mm²
Latest advanced phosphor technology, high color consistency
Thermal-electric isolation copper substrate, safe & stable
Intersecting distribution of 4 colors, optimized color-mixing

Application Area

Entertainment lighting
Architectural lighting
Medical illumination, Fiber Optics
Event lighting
Stage lighting Projection

RoHS REACH
Typ. Spec
Color DWL(nm) Lumen(lm) IF=1500mA Current(mA) Voltage(V) Thermal Resistance(K/W)
Red 618-628 2000-2300 1800 47-50 0.15
Green 520-530 4200-4600 1800 53-55 0.18
Blue 450-460 850-1050 2400 47-50 0.15
White 6500-6800K 5400-6400 2400 47-50 0.15
