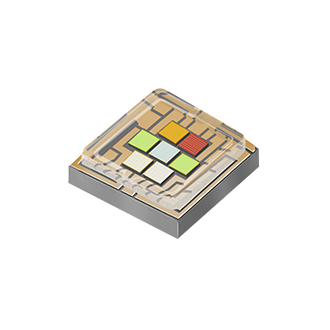

TX6070RGBYLWP25

Home Products Product Center

Product Features

· Compact power LEDs, Individual quad chips
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity · Bi-color 1800-6500K, Excellent colo

Application Area

Stage & Architectural lighting: Beam wash, Moving panel
Matrix panel lights, Moving Heads panels, Par cans lights
Flashlight Head Light

RoHS REACH

Typ. Spec
Color DWL(nm) Lumen(lm) Current(mA) Voltage(V) Ra
Red 620-630 100-120 1200 2.0-2.8 /
Green 520-530 220-260 1200 2.8-3.6 /
Blue 450-460 40-50 1200 2.8-3.6 /
Lemon 3850-4000K 240-260 1300 2.8-3.8 /
Yellow 590-595 55-80 800 2.6-3.4 /
White 6000-6800K 260-300 1200 2.8-3.6 70
Purple 390-400 600-750(mW) 700 3.0-4.0 /
