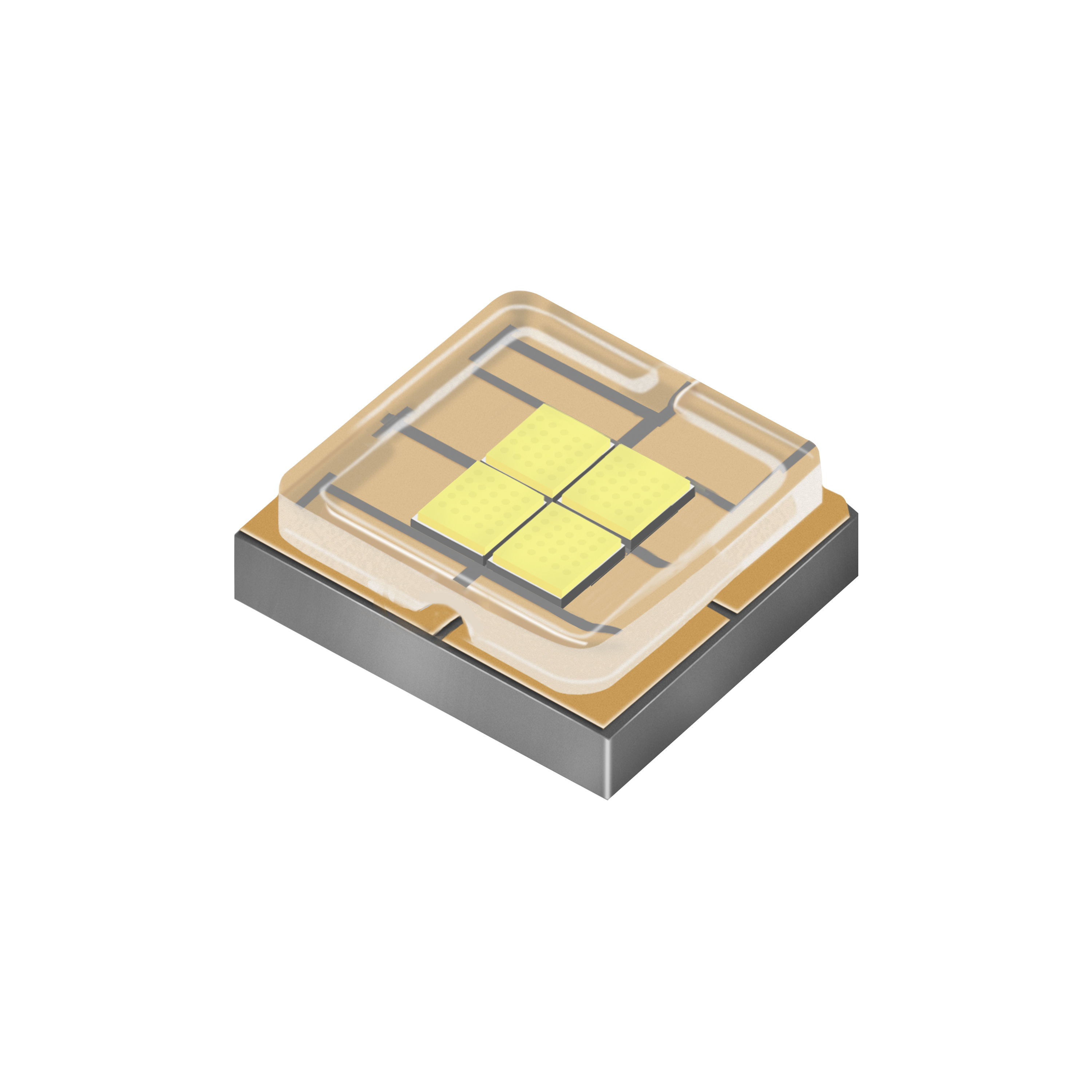

    TX-5050W40

    Home Products Product Center

    Product Features

    · Compact power LEDs, Individual quad chips, Small LES 2.1*2.1mm
    · Vertical chips, higher thermal conductivity, easy light collection
    · Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity

    Application Area

    Stage lighting,Outdoor lighting
    Special lighting
    RoHS REACH
    Characteristics Unit Typical MAXIMUM
    Viewing Angle degree 120
    DC Forward Current mA 2500*2 3000*4
    Forward Voltag V 3.3 3.6
    Thermal Resistance K/W 1.1
    Typ. spec
    CCT(K) Lumen(Lm) Ra Current(mA)
    6500-7500 2200-2650 70 2500*4
