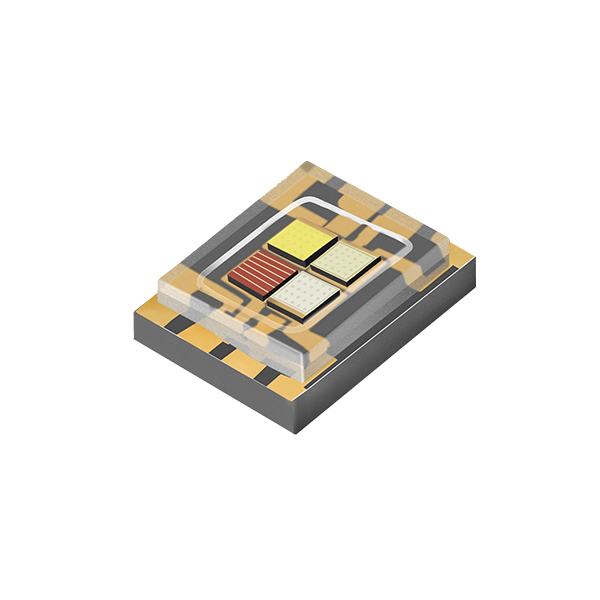

TX-5060RGBW / RGBL 40W 2.5-3.0A

Home Products Product Center

Product Features

· Compact power LEDs, Individual quad chips, Small LES 2.1*2.1mm
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity · RGBW 4 in 1, Excellent color mixing

Application Area

Entertainment moving head
Architectural lighting

RoHS REACH

Typ. Spec
Color DWL(nm) Lumen(lm)If=1000mA Max Current(mA) Voltage(V) Ra
Red 620-630 100-130 2200 2.0-2.8 /
Blue 450-460 35-45 3000 2.8-3.8 /
Green 520-530 195-270 3000 2.8-3.8 /
White 6000-7000K 2305-355 2500 2.8-3.8 70
