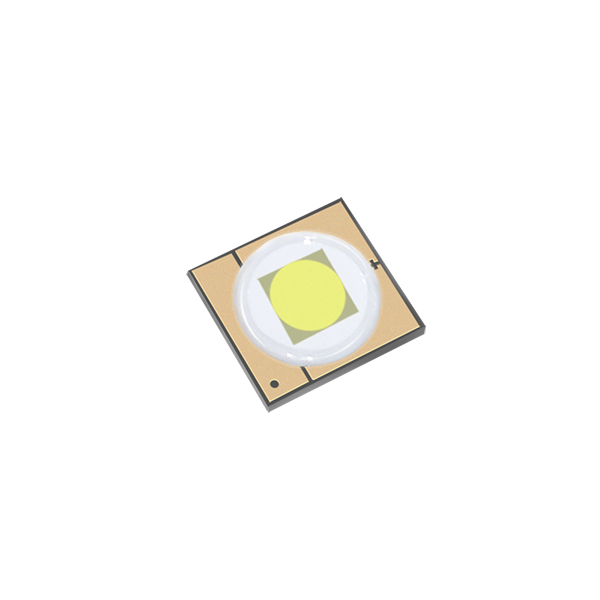

TX5050W20

Home Products Product Center

Product Features

· Ceramic PKG, eutectic-bonding, thermal-electric isolation, fast heat conductivity
· Less Relative expansion coefficient, stable, good air-tightness for tough conditions
· RGBW 4 in 1, Excellent color mixing effect

Application Area

Outdoor Landscape illumination & Architectural lighting: Liner light, wall-washer, flood light, Under-ground and under water light
Entertainment lighting/Stage lighting: Matrix panel lights, Moving Heads panels, Par cans lights

RoHS REACH 5050W30

Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 120
DC Forward Current mA 1000 5000
Forward Voltag V 3.3 4.0
Thermal Resistance K/W 0.64

Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
5300-6500 1200-1400 70 7000
